Description
These coolers allow for the use of Opticlimate Water Cooled Climate Control Systems without the need to connect to a mains water supply. ie. the system is in its own closed loop and no water goes down the drain.
A pump is included with every water cooler. However you will need to purchase 3-core mains cable and 2 x 13amp uk plugs in order to wire this into the fan/pump controller (not included!) You’ll need two plugs because, there will be one for the fan (that’s on the chiller) and one for the pump.
Note: you WILL need a fan/pump controller if you are twinning this chiller with a revo max.

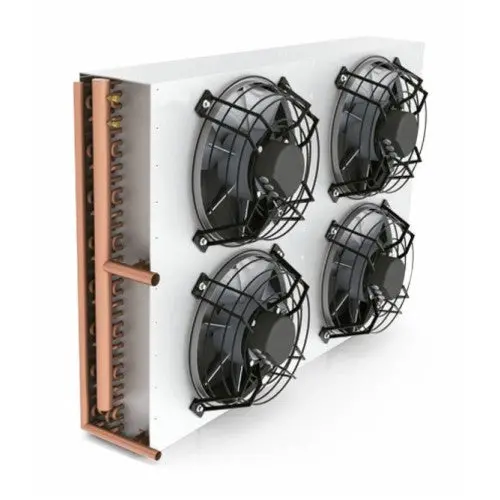

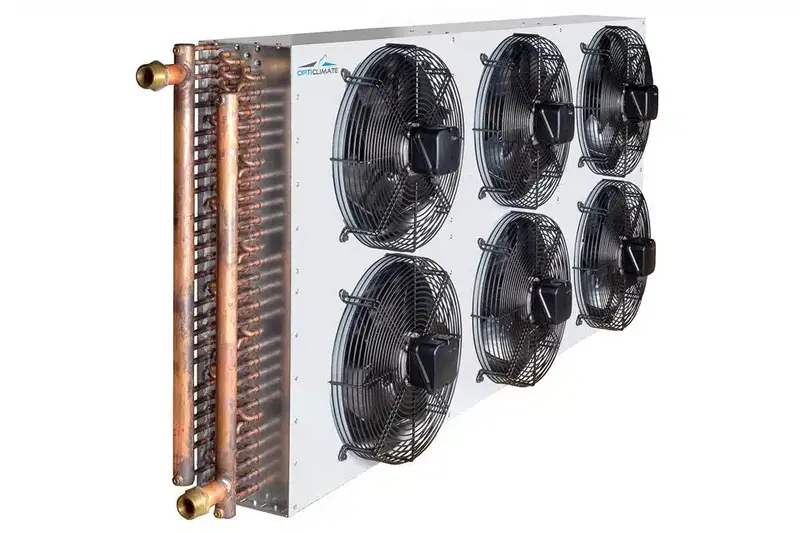

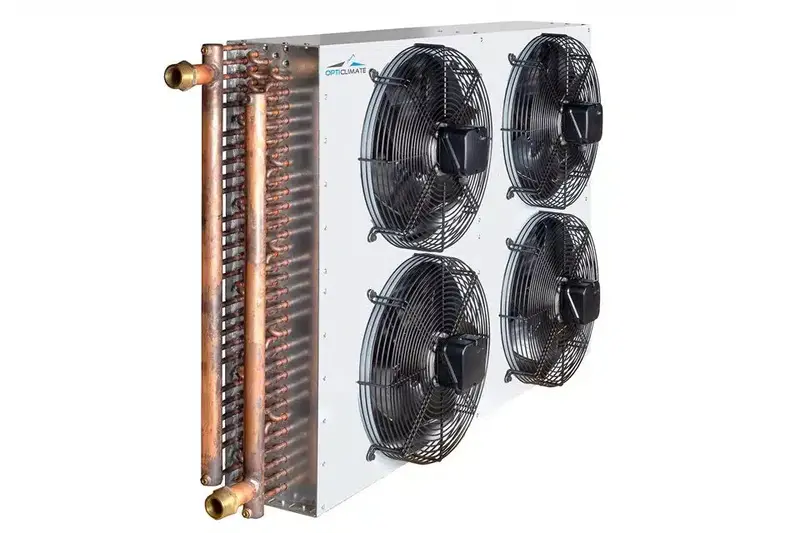

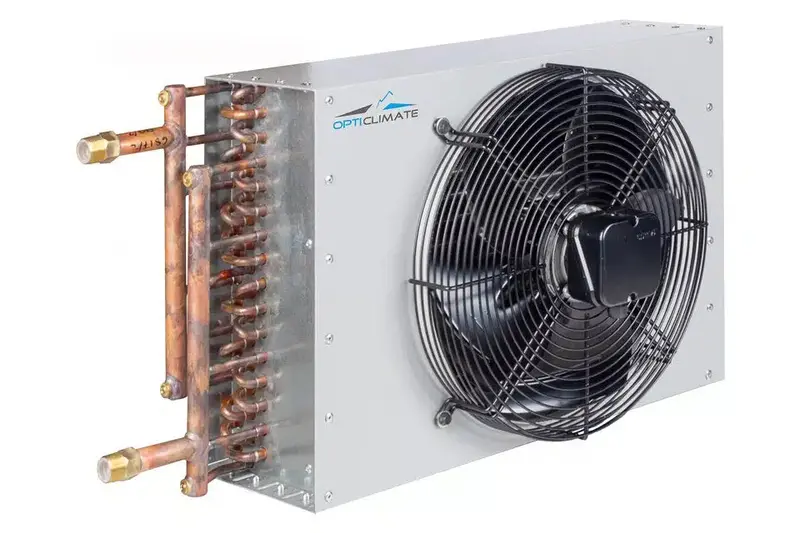

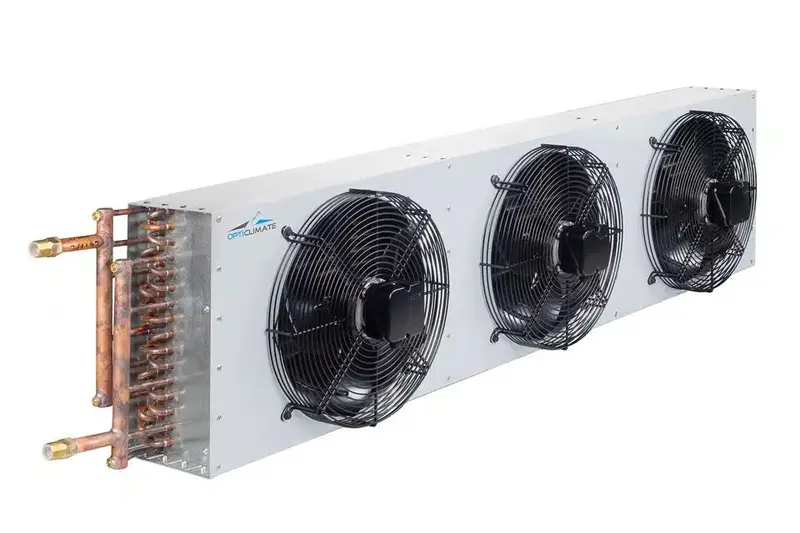

Vertical Compact Coolers
Small and lightweight water chiller, ideal for small spaces in residential and commercial buildings.
Capacity: from 4 to 53 kW
Tube diameter: 3/8″ smooth inner surface (S) and grooved inner surface (R)
Fin spacing: 2.1 mm
Fan motor diameters: 350 mm – 4 and 6 poles
Available number of fan motors: from 1 to 2 x 3 fan motors
Available in different sizes and capacity cooling:
4.5 kW: 650 x 320 x 410 5kg (1 fan)
9 kW: 1200 x 320 x 410 9kg (2 fans)
14 kW: 1720 x 320 x 410 15kg (3 fans)
18 kW: 1170 x 320 x 810 16kg (2 fans)
32 kW: 1770 x 320 x 810 26kg (2×2 fans)
The water cooler cools the hot water produced by the OptiClimate system with glycol. Since the water cooler works with a closed system, there is no evaporation. The water cooler cools by transferring heat from a liquid to colder ambient air, so the water cooler unit must be placed outside. This system only needs to be filled once. The water or glycol remains inside the system.
- Energy consumption is low
- Very long distances can be achieved between the indoor and outdoor units
- Air conditioning engineers and cooling gas are no longer required
- Very quiet in operation from 28 dB(A)
- Fully closed system (no water consumption once the unit is filled)
- Multiple indoor units can be connected to 1 suitably sized outdoor unit
